Requires either a Wi-Fi network or a micro SIM-card for cellular connection

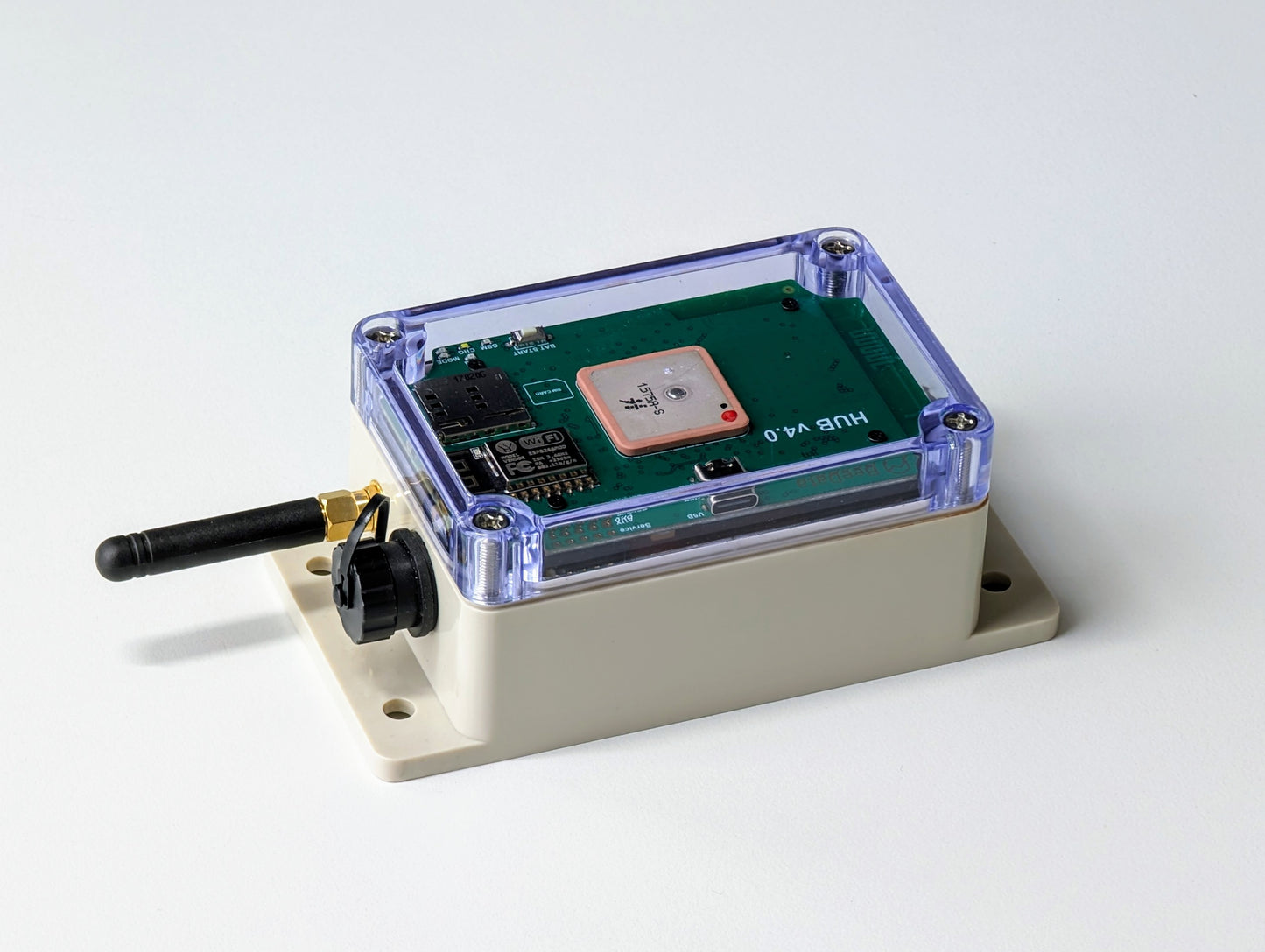

The device that receives information from hives through LoRa and sends it to the server through Wi-Fi or GSM. You can think of it as a telecom tower that connects with up to 1500 "Hive" units within up to 3000 m range.
It requires a constant power supply (adapter included) but has a built-in battery for 24-48 hours of uninterrupted service.
Shipping
Shipping
Warranty
Warranty
Returns
Returns
Power supply
External power
12V, 1A
Avg: 0.012mA (at 12V)
Max: 0.250mA (at 12V)
Reserve rechargeable battery
Type: Li-ion
Capacity: 10 000 mAh
Estimated battery life: 24-48 hours*
* Depends mainly on the number of Hives used with the device, but also on temperature, connection quality, battery age.
Operating capabilities
Max hives supported: 1500
Flash-memory log capacity: 32 000 events
It means in the absence of internet access Hub can store data of
200 Hives for 3 days
80 Hives for 1 week
20 Hives for 1 month
Dimensions
Width: 140mm
Length: 70mm
Height: 50mm
Weight
425g
Operating conditions
Temperature range: -30°C ... +55°C
Environment protection IP66 (declared):
• Dustproof
• Protected against heavily flushing liquids on the device from any direction
Wi-Fi connection with the server
Wi-Fi 2,4GHz
GSM connection with the server
1 micro SIM card
GSM900/1800 GPRS class10
LoRa connection (ISM band) with Hives (Main units)
868MHz, 10mW
Range: up to 3000m*
* The range depends on hub terrain and hub mounting location. Direct view between Hub and hives is necessary for long-range configuration.
Bluetooth connection with the application
2.4GHz, 0.1mW
Range: 2…4m
